7Z3D Core Board
Adopting NXP's Cortex-A7 core i.MX6ULL processor with a maximum main frequency of 800MHz. It has multiple interface and is equipped with an advanced power management architecture, which can meet the application needs of most industrial control scenarios.
Product Highlights
Dual CAN Bus, Dual Ethernet
Supports Audio Decoding and Digital Camera
Mature LGA Mass Production Guidance Process
CNG temperature and pressure sensor
The CNG pressure and temperature sensor integrates two sensors, temperature and pressure, to detect the pressure and temperature inside the gas tank and pipeline system, and send electronic information to the car's dashboard and control unit.
Product features and advantages
Temperature and pressure sensors can provide two signals: temperature and pressure
Adopting ceramic capacitor technology, it combines high precision and excellent stability
High precision, excellent long-term stability
Excellent EMC/ESD performance
● Overvoltage and reverse polarity protection, as well as short circuit protection
Customized design of pressure range, output curve, and external dimensions
● Highly modular product configuration
Excellent sealing and protective design, with a protection level of up to IP69
● Overvoltage and reverse polarity protection, as well as short circuit protection

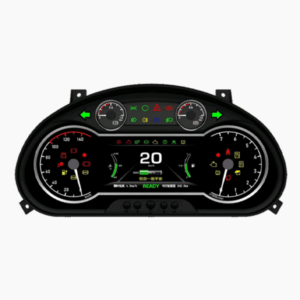

Color screen bus instrument HNS-ZB219B
The color screen bus instrument HNS-ZB219B is a new generation intelligent bus instrument based on the J1939 communication protocol. The sheath and structure are fully compatible with traditional ZB219 series instruments, and can be directly replaced. It is suitable for various vehicle models and equipped with a driver module to form a full vehicle CAN bus system. It adopts an RTOS operating system for multitasking processing, ensuring real-time and reliability.
Features
● Equipped with 5 CAN communication interfaces that comply with ISO11898 standard;
● 7-inch TFT screen, supporting a resolution of 800 × 480, with indication and alarm functions;
● 26 LED status indicator lights, front and rear air pressure, vehicle speed and speed are indicated by stepper motors;
● 40 switch inputs, rich high and low configurations, 6 power outputs, capable of short circuit detection and protection;
● Equipped with sound and light alarm function, it can promptly and accurately indicate the location of the fault.
Differential pressure sensor
The DPF/GPF differential pressure sensor is a sensor designed based on MEMS technology to measure the pressure difference between two ports.
Product features and advantages
● Wide working temperature range of -40-140 ℃, with full temperature compensation
● Fluorine containing gel encapsulation protection, adapt to the harsh working environment of tail gas
Excellent overvoltage protection capability, with a reverse voltage of -24V and an overvoltage of 28V
The appearance and customer interface can be compatible with mainstream first tier supplier products
Circuit units are mounted using SMT technology
According to customer requirements, multiple measurement ranges can be customized
Digital Energy Industrial & Utility-Scale ES Solution
Providing one-stop service from energy storage gateways to cloud platforms. It supports data monitoring of all PCS, BMS, air conditioners, electric meters and other devices, enables remote centralized control of energy storage systems, facilitates safe O&M, and helps expand revenues for C&I and utility-scale energy storage users.

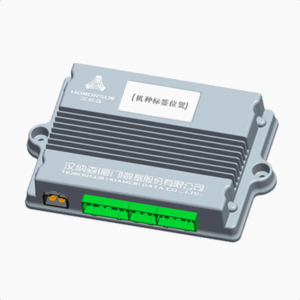

Driver module HNS-QA202A
The HNS-QA202A driver module is used for load control of the entire vehicle CAN bus system, suitable for public transportation and passenger transport. Its main function is to collect data from switches and sensors, control the load, and send relevant information to various modules through the CAN bus to diagnose the load status. By coordinating with the bus instrument, 2/3 modules can cover the entire vehicle bus function.
Features
One CAN communication interface that complies with the ISO11898 standard;
18 high-end power outputs, 2 2A LED driver outputs; 1 12V/100mA power output;
18 switch inputs, 2 PWM pulse inputs; 8 sensor inputs;
Each module can be replaced with each other and automatically identified through software;
The working temperature is -40 ℃~85 ℃, and the working life is not less than 8 years.
Using 2/3 QA202A can achieve the full vehicle bus function;

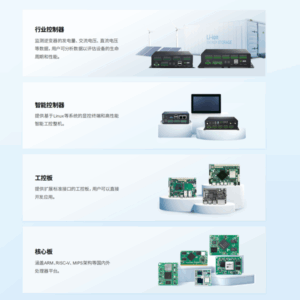

Edge Computing Products
With over 20 years of embedded experience, Welson Semi Tech is committed to providing high-quality embedded products and services, including core boards, industrial control boards, industrial computers and energy storage gateway industrial computers. These hardware combinations form a complete embedded design solution to meet the needs of new energy, industrial control, intelligent transportation, medical and other fields.
Industry Controller: Monitors inverter power generation, AC/DC voltage, enabling data analysis for device lifecycle and performance evaluation.

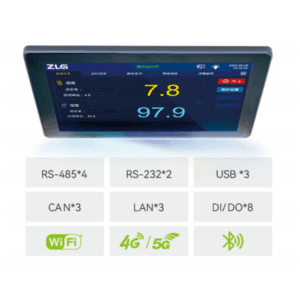

Intelligent Controller: Provides display-control terminals (Linux-based) and high-performance intelligent industrial computers.
Industrial Control Board: Offers boards with extended standard interfaces for direct user application development.
Core Board: Covers ARM, RISC-V, MIPS and other domestic and foreign processor platforms.

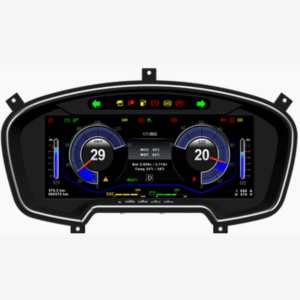

Full LCD instrument HNS-ZB230A
The full LCD instrument panel 230A adopts a whole LCD screen as the instrument panel, suitable for traditional and new energy vehicles. It displays vehicle information through virtual pointers and numbers, with 3D dynamic display effect, rich display content, gorgeous effects, clear values, and enhances the overall technological sense of the vehicle.
Features
Intelligent sound and light voice alarm, panoramic reversing image;
● It has 5 CAN communication interfaces that comply with the ISO11898 standard;
● There are 39 switch inputs, 5 sensor inputs, and 14 status display lights;
● 12.3-inch TFT full LCD screen, supporting a resolution of 1920X720.
Gateway module HNS-WG203
The gateway module HNS-WG203 is a new type of data conversion module with CAN communication function configured for the entire vehicle CAN bus. It can set the sending interval and priority of each CAN message to meet the transmission needs of different vehicle models. The communication protocol adopts the annotated SAE-J1939 format, and this module can achieve filtering, forwarding, transparent transmission, and data assembly of 6-channel CAN network data. The terminal resistance can be selected.
Features
6 CAN communication interfaces that comply with ISO11898 standard;
● Equipped with CAN high and CAN low short circuit protection for power and ground;
Working voltage 18-32V, working temperature -40-85 ℃, storage temperature: -40 ℃ -95 ℃;
Has strong anti vibration and shielding effects, and the module has anti-interference ability inside;
● It has dust-proof, moisture-proof and certain anti-corrosion capabilities, and can adapt to different environments;
The flame retardant rating of the shell reaches the highest level V-0, and the protection level is IP5X.

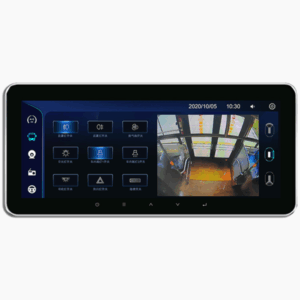

Intelligent central control HNS-CY204
The intelligent central control HNS-CY204 is a high-quality display terminal device that connects the power system, body system, and information system. Equipped with video surveillance and multi screen integrated display, it integrates online diagnosis of the entire vehicle and supports a large number of apps to expand third-party applications, such as WeChat, driver ordering system, scheduling, etc. It can be installed in various embedded, suspended, and vertical ways to meet the needs of different vehicle models.
Features
12.3-inch 31mm full LCD thin and light large screen, easy to operate and fully touch controlled;
Resolution 1920 * 720, supports multi theme switching, and displays high-definition and rich effects;
Integrated vehicle online diagnosis, vehicle controller, motor controller, battery box information, etc;
● Integrated radio, air conditioning control, switch control, video surveillance, and display of vehicle status information;
● 3-channel CAN interface, supporting SAE 1939 communication protocol interaction.
