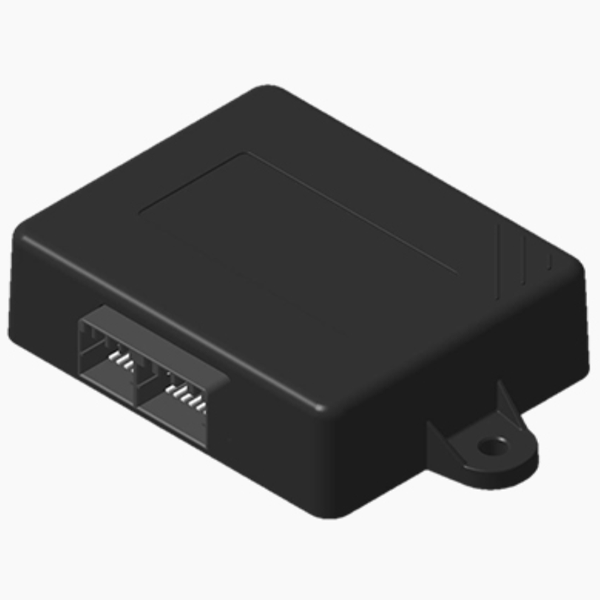

Gateway module HNS-WG203
The gateway module HNS-WG203 is a new type of data conversion module with CAN communication function configured for the entire vehicle CAN bus. It can set the sending interval and priority of each CAN message to meet the transmission needs of different vehicle models. The communication protocol adopts the annotated SAE-J1939 format, and this module can achieve filtering, forwarding, transparent transmission, and data assembly of 6-channel CAN network data. The terminal resistance can be selected.
Features
6 CAN communication interfaces that comply with ISO11898 standard;
● Equipped with CAN high and CAN low short circuit protection for power and ground;
Working voltage 18-32V, working temperature -40-85 ℃, storage temperature: -40 ℃ -95 ℃;
Has strong anti vibration and shielding effects, and the module has anti-interference ability inside;
● It has dust-proof, moisture-proof and certain anti-corrosion capabilities, and can adapt to different environments;
The flame retardant rating of the shell reaches the highest level V-0, and the protection level is IP5X.
